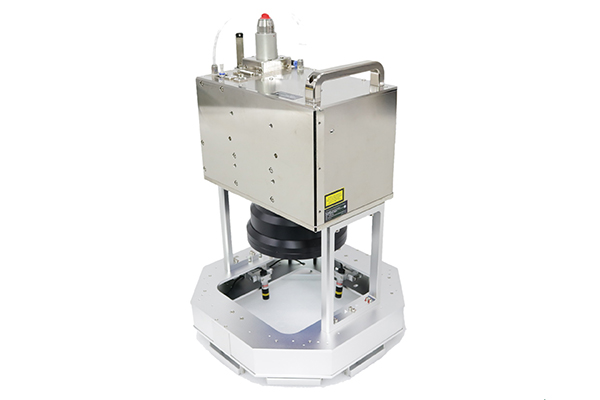

SCOUT-300
Features
- High power laser processing (Welding/ Cutting)
- Wave length: 1070nm
- Maximum laser power: 5000W(@ Air /Water Cooling)
- Connection: QBH
- Weight: 35Kg
| Focal Length |
Working Filed |
Cooling |
Optics |
| F-306mm |
140 x 140mm |
Air / Water |
Fused Silica |
| F-420mm |
200 x 200mm |
Air / Water |
Fused Silica |
| F-520mm |
300 x 300mm |
Air/ Water |
Fused Silica |
| F-620mm |
350 x 350mm |
Air/ Water |
Fused Silica |

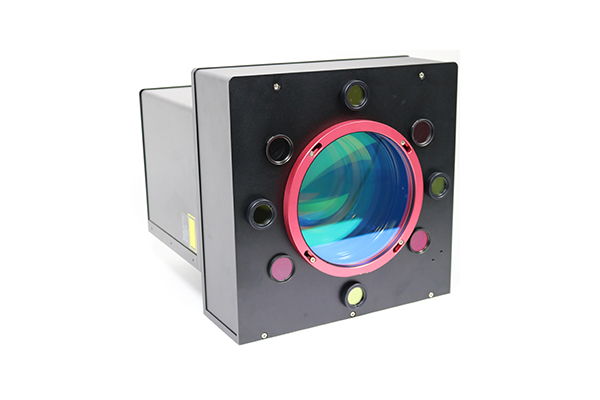

SCOUT-300EVS
Features
- High power laser processing (Welding/ Cutting)
- Wave length: 1070nm
- Maximum laser power: 5000W(@ Air /Water Cooling)
- Connection: QBH
- External vision camera
- Number of CCD: 4ea
- Scout image capture time: 1sec
- Full field live view
- Weight: 45Kg
| Focal Length |
Working Filed |
Cooling |
Optics |
| F-420mm |
200 x 200mm |
Air / Water |
Fused Silica |
| F-520mm |
300 x 300mm |
Air/ Water |
Fused Silica |

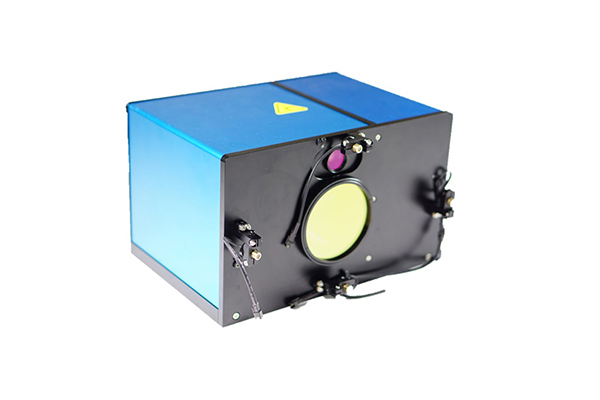

SCOUT-300Z
Features
- For high power laser processing (Up to 5KW)
- Connection: QBH
- Variable collimation module(No F-theta lens)
- Wide working field
- 800 x 800mm (@ F-1920mm)
- External high resolution CCD
- Scout image capture time: 1sec
- Scout function
- Weight: 45Kg

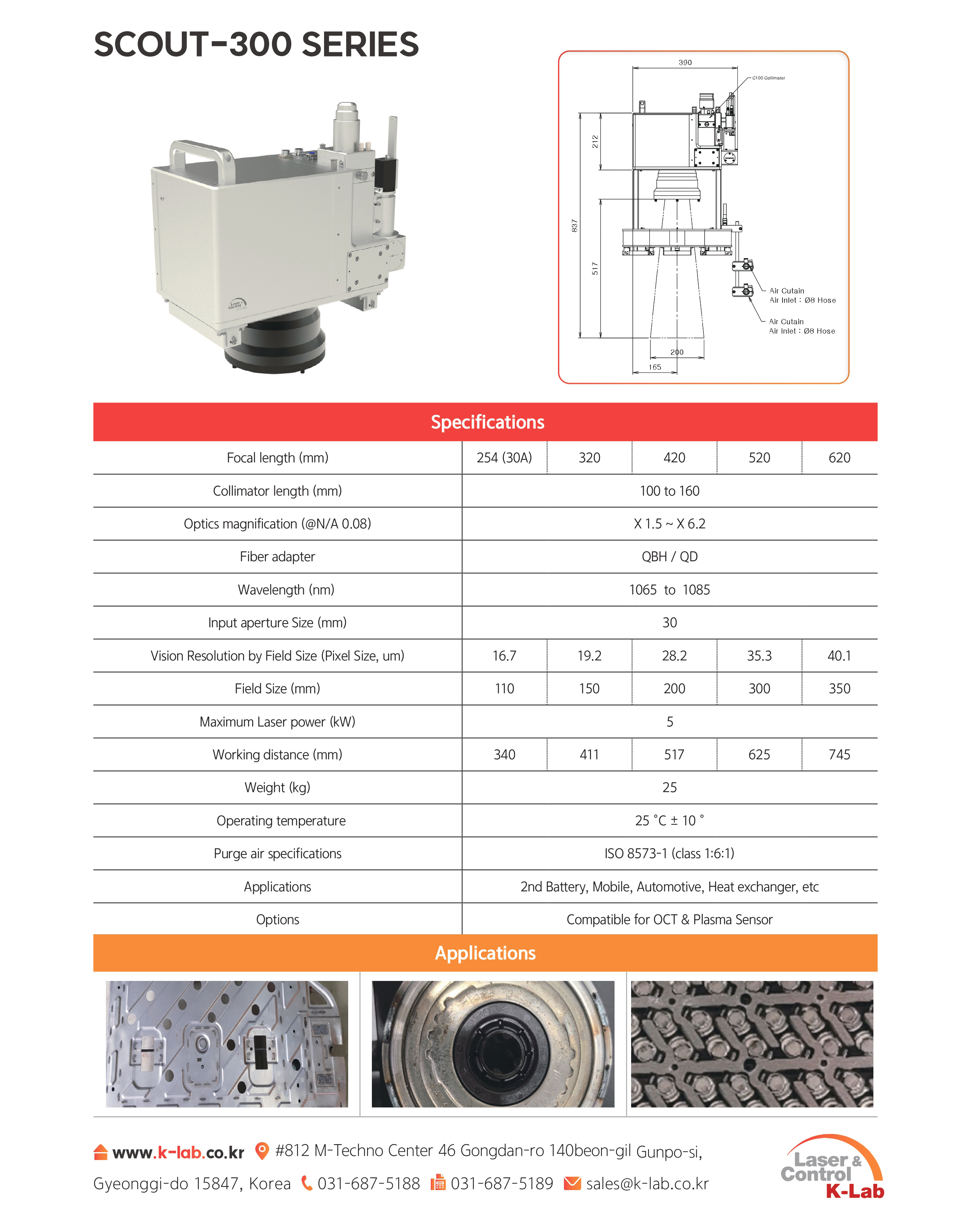

Datasheet
